Spindle Motor, 2.2KW CNC Air Cooling Spindle Motor ER20 4pcs Bearings With 2.2KW QL Inverter VFD 80mm Aluminium Clamping Bracket(3 Bearings)

Power:2.2kwCurrent:10AFrequency:0-400HzSpeed: 0-24000rpmRunout Off:Less than 0.01mmDiameter(mm): 80Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT4pcs fully sealed angular contact bearingsCollet ER20Clip Knife diameter13mm12mm127mm11mm10mm9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)Air Cooling ER20 collet chunkGrease LubricationAdvantage:4 P4 angular contact bearings,2×7005C P4 DT &27002C P4 DTincrease spindle life ER20 collet nutyou can use ER20 collet kits for itCarefull assembly make the spindle more precisionalRunout off 001mmCoaxial degree less than 00025mm.Better appearance, after a long time using,still looks like new.We are the spindle manufacturer,we offer only best quality and best price to you.1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings. 2. Ceramic ball bearings areresistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using .3. Ceramic ball bearings have low friction, low noise and long service life. 4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings. Basic parametersInput Frequency:48-63 HzOutput Frequency:0-400 HzInput Phase: 1 or 3 phaseOutput Phase: 3 phase

• Size80x224mmMiddle body diameter80mmxLength224mm
• Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
• Cooling:Air cooling

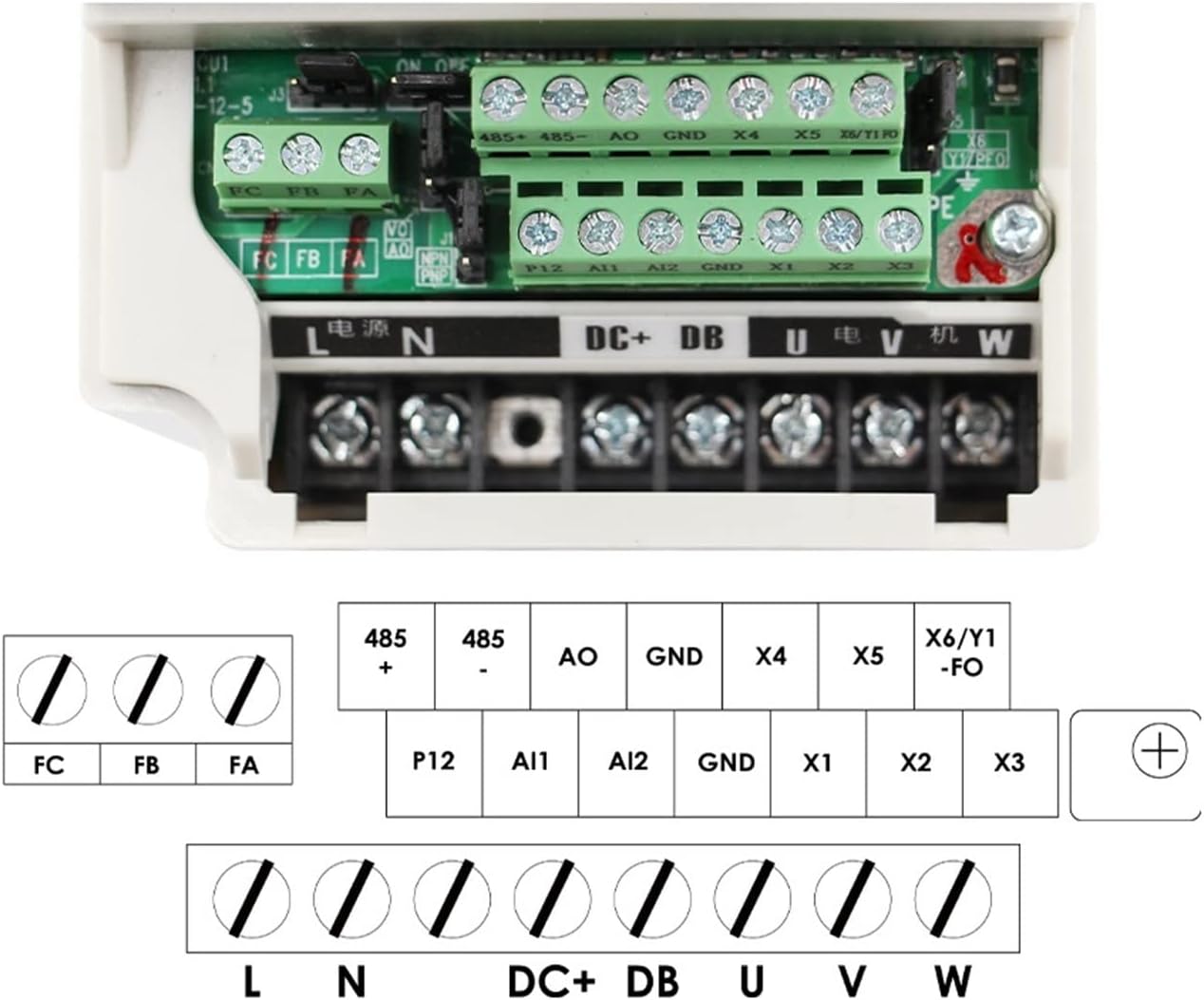

• Power Interface:Optional H20-4 pins waterproof air . The air marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
• Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
